Belt conveyor

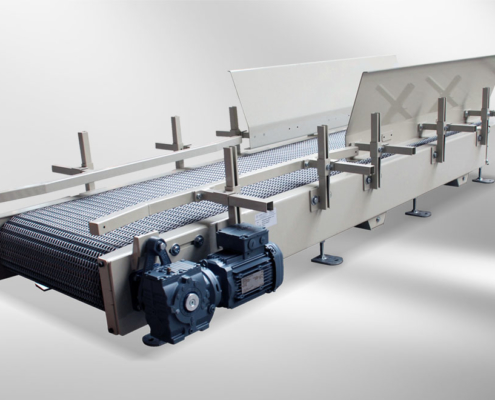

Plastic modular belt conveyor

Multifunctional > Robust > Modular

Plastic modular belt conveyors are universally applicable, no matter whether light or heavy goods, area or point loads are involved. Whether cold or hot, small or large – almost any goods can be transported. Wherever the ALFOTEC belt conveyor reaches its limits, the ALFOTEC steel plate conveyor can usually provide the solution. Plastic modular belt conveyors can transport uphill or downhill and are truly multi-talented. In addition to a harmonious appearance due to the selection of different belt colours, these conveyors are very low-maintenance.

Suitable for:

Big Bag
Oily small parts
Conveyed goods with heavy point loads
and much more..

Product data sheet

The advantages at a glance

Absorption of lateral forces possible, e.g. when pallets are loaded from the side or when pneumatic sliders are used
Universally applicable for any width – from very narrow to extra wide
Depending on the application, we will design the appropriate link belt for you: open / closed design, rubber modules, additional carriers and other designs
No tensioning of the link belt necessary, it always remains tensioned in the running surface by drive and deflection sprockets
Simple and quick replacement of the belt and belt elements is possible due to individual links
Individual, robust and solid construction, also in Z-design and much more
When using special link belts the conveyor can be curved

Specifications

The following guide values apply to standard conveyors, in internal ambient conditions and for defined applications and goods conveyed.

Lengths (per conveyor, fully assembled)	bis 6.000 mm
Usable width	bis 2.300 mm
Overall height (motor position below)	ab 400 mm
with Omega drive, reversing operation	ab 450 mm
Overall height (motor position lateral)	ab 80 mm
with Omega drive, reversing operation	ab 250 mm
Speed	bis 60 m/min
Surface load, standard	bis 1.000 kg / m
Drive (IE3/4), reversible	Fabrikat SEW EuroDrive
