It is hard to imagine conveyor technology without conveyor rollers. We offer numerous variants made of plastic, steel and stainless steel – ball bearings with one or two rows of balls (TR0) or with cone ball bearings (TR1). Both variants are convincing due to their very smooth running and are ideally suited for gravity drive. In addition, we offer idlers with deep groove ball bearings according to DIN 625 (TR2) for heavy loads, such as the transport of pallets. These conveyor rollers are available with drive (sprocket, toothed belt, …) or without drive. For this type, deep groove ball bearings are either pressed into the tube or welded to it using circular blanks – depending on the application and load.
The following guide values apply to standard conveyors, in internal ambient conditions and for defined applications and goods conveyed.
TR0 – Surface load with ML=300 mm | 10 – 20 kg |
---|---|
Pipe diameter: | 20, 30, 40, 50 mm |
Axle diameter: | 6, 8, 10, 12 mm |
TR1 – surface load with ML=300 mm | 30 – 240 kg |
Pipe diameter: | 30, 40, 50, 60, 80 mm |
Axle diameter: | 8, 10, 12, 15 mm |
TR2 – Surface load with ML=300 mm | 100 – 495 kg |
Pipe diameter: | 50, 60, 80, 89, 108 mm |
Axle diameter: | 10, 12, 15, 17, 20, 25 mm |
PIPE DIAMETER (mm) | AXLE DIAMETER in mm | |||
---|---|---|---|---|
6 | 8 | 10 | 12 | |
20, Steel + Plastic | ● | ● | ||
30, Steel + Plastic | ● | ● | ● | |
40, Steel + Plastic | ● | ● | ||
50, Steel + Plastic | ● | ● | ● |
PIPE DIAMETER (mm) | AXLE DIAMETER in mm | ||||
---|---|---|---|---|---|
8 | 10 | 12 | 15 | ||
30, Steel | ● | ● | |||
40, Steel | ● | ● | ● | ||
50, Steel | ● | ● | ● | ● | |
50, Plastic | ● | ● | ● | ||
60, Steel | ● | ● | ● | ● | |
80, Steel | ● | ● | ● | ● |
PIPE DIAMETER (mm) | AXLE DIAMETER in mm | |||||
---|---|---|---|---|---|---|
10 | 12 | 15 | 17 | 20 | 25 | |
50, Steel | ● | ● | ● | |||
60, Steel | ● | ● | ● | ● | ||
80, Steel | ● | ● | ● | ● | ||
89, Steel | ● | ● | ● | ● | ● | |
108, Steel | ● | ● |

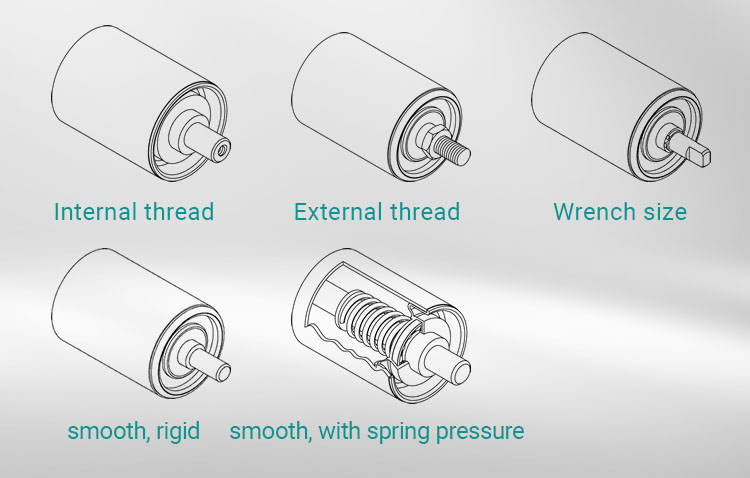

Depending on the construction of the roller conveyor frame, our support rollers can be machined with different axle ends.
