Safety fence system
Protection of machines and conveyor systems
Our safety fence systems are modular systems which serve to protect machines and conveyor systems as well as to protect employees. They are made of galvanized steel (optionally powder-coated) and comply with the EN ISO 14120 standard. The various elements can be flexibly assembled exactly according to your requirements.
We are happy to supply the appropriate protective fence with doors and suitable brackets for various automatic locks or with a simple euro cylinder lock. Recesses or pass-throughs are also no problem, please ask us for your individual offer, we will be happy to help you!
Typical areas of application:
- Internal
- Enclosure of machines
- Demarcation of security restricted areas
- Robot cells
Machine safety guard
The machine guards comply with the EN ISO 14120 standard
Mesh sizes:
- 20 x 100 mm 2,5 x 2,5 mm
- 50 x 100 mm 2,5 x 2,5 mm
- 50 x 50 mm 2,5 x 2,5 mm
- 50 x 50 mm 3 x 4 mm
- 50 x 50 mm 5 x 5 mm
Incl. cross-cut profiles and rubber edge protection
Surface finish:
- Standard galvanized
- Choice of RAL colour
Supports
Profile variants:
- Single 60 x 60 mm
- Double 60 x 220 mm or 60 x 320 mm
Heights of the supports:
- Support: H = 450 – 2.350 mm (60 x 60)
- Support: H = 3.050 mm (60 x 60)
- Support: H = 4.450 mm (60 x 220)
- Support: H = 10.700 mm (60 x 320)
Column extension as an optical accessory.
Surface finish galvanised as standard, any RAL colour is possible.

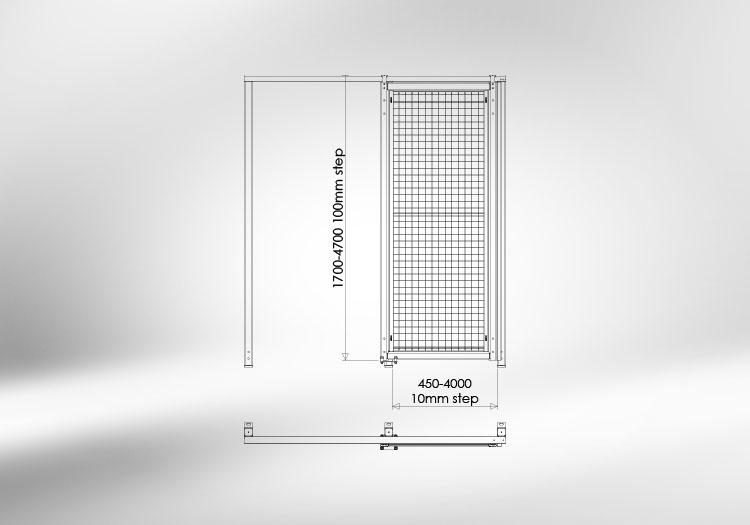

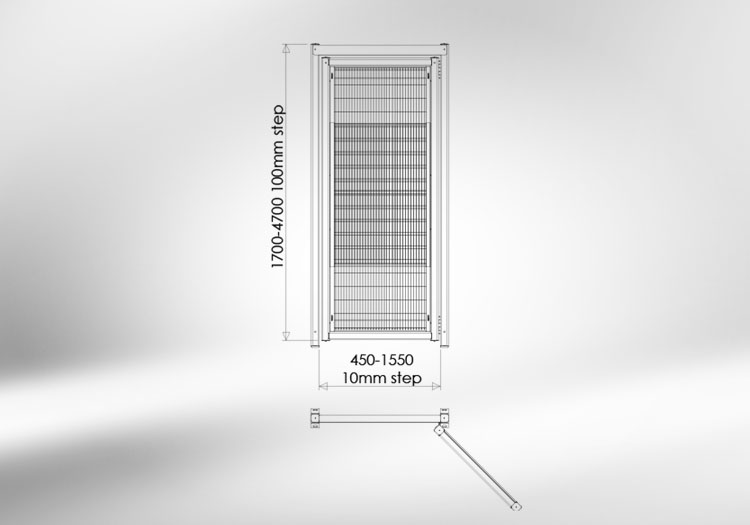

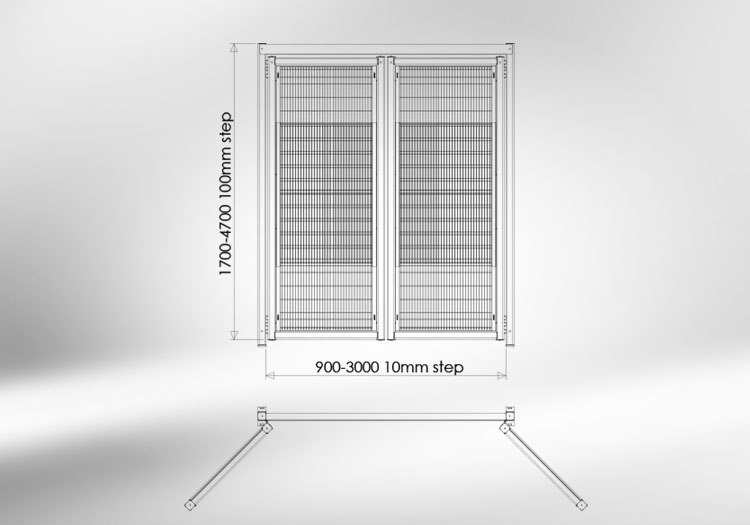

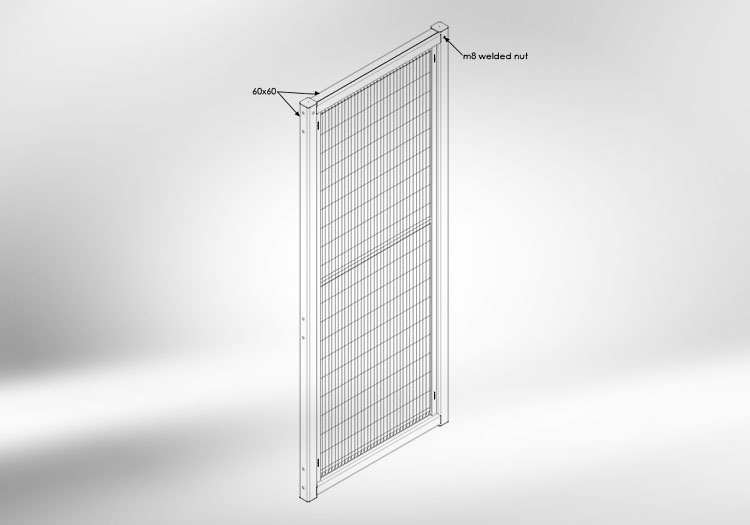

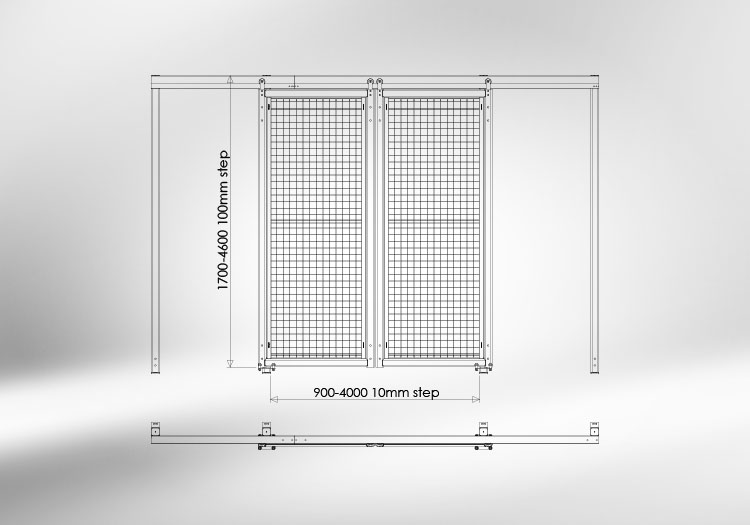

Door leaf, hinged doors or sliding doors
Depending on the version with:
- Euro cylinder lock 17 mm
- Euro cylinder lock according to Swiss standard 22 mm
- Electric door frame
- Padlock device
Optionally with brackets for:
- Euchner MGB
- Schmersal AZM201
- Schmersal AZ16
- Other versions on request
Application examples
